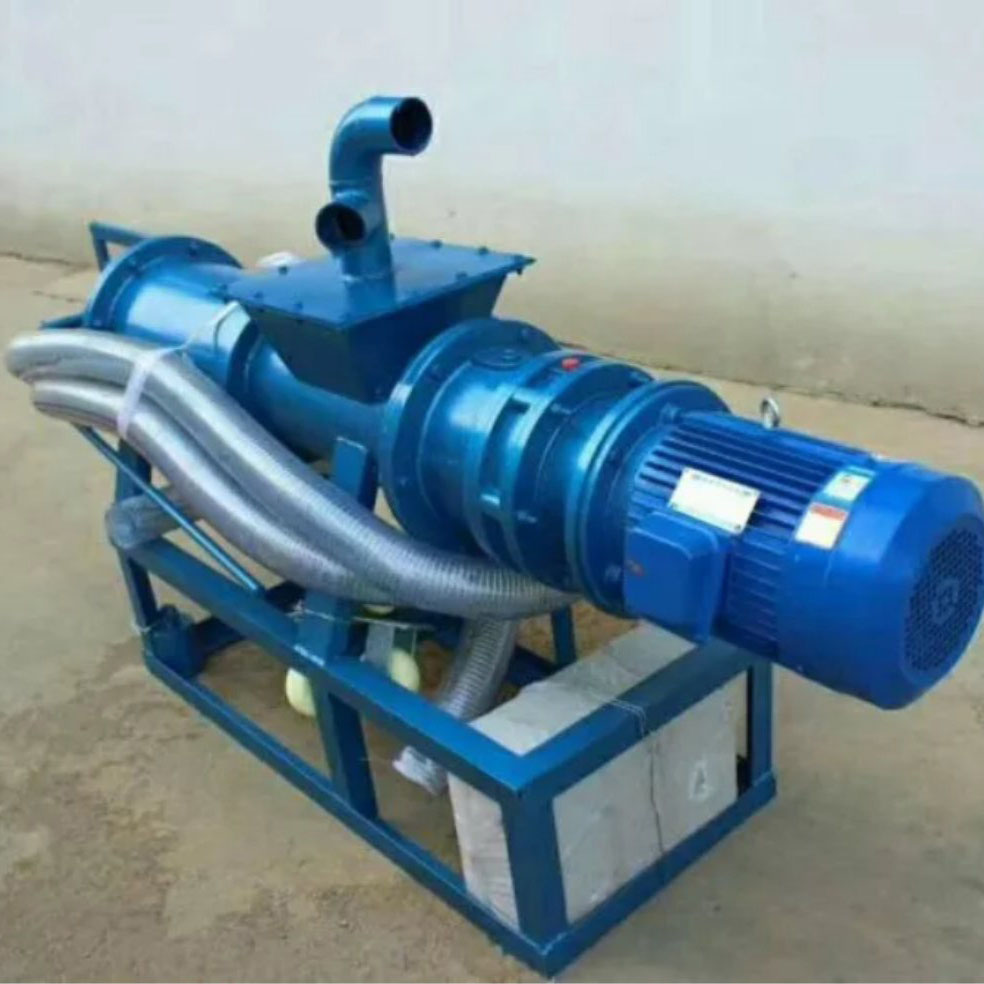

Equipment Introduction of manure Dewatering Machine
Spiral extrusion type solid-liquid separator is a new mechanical dewatering equipment developed by our company by referring to various advanced dewatering equipment at home and abroad and combining with our own dewatering equipment r&d and manufacturing experience.Spiral extruding solid-liquid separator is mainly composed of control cabinet, pipeline, body, screen, extruding jiaolong, reduction motor, counterweight, unloading device and other parts, this equipment is widely used, and has been recognized by the majority of users in the market.
| Model | JY-180 | JY-200 | JY-280 |
| Voltage(Customized) | 380V | 380V | 380V |
| power | 4kw | 4KW | 5.5KW |
| Machine size(mm) | 2000*600*1300 | 2200*610*1350 | 2400*800*1300 |
| Machine weight | 340kg | 510KG | 680KG |
| Capacity | 10-15 M³/H | 15-20 M³/H | 20-25 M³/H |
| Sieve diameter | 180mm | 200mm | 280mm |
| Inlet diameter | 76mm | 76mm | 76mm |
| Over flow port diameter | 76mm | 76mm | 76mm |
| Drain pipe diameter | 110mm | 110mm | 110mm |
| Machine Material | Carbon steel +304 | Carbon steel +304 | Carbon steel +304 |
| stainless steel | stainless steel | stainless steel | |
| Screw material | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Sieve material | 304 stainless steel | 304 stainless steel | 304 stainless steel |
As different materials has different capacity, we have tested the output of several different materials for your reference
Pig Manure:15-20 m³/h
Cow Dung:10-15 m³/h
Chicken Manure:7-10 m³/h
Biogas Slurry Water:10-15 m³/h
1.Animal wastes, such as pig manure, cow dung, poultry dung, horse excrement and otherkinds of animal manure.
2.Biogas slurry, sludge gas and biogas fermentative residue.
3.Manioc waste, tea slag, sweet potato waste, maize pulp, bagasse, medicine dregs, wppdpulp fiber, paper pulp fiber, bean dregs, coffee grounds and so on.
4.Any kinds of solid liquid separation.
5.The liquid material can be directly used for crops as organic fertilizer.
6.The solid manure can be shipped to regions that lack of fertilizer to improve the soil structure. What’s more, mix in the grass bran stirring, adding strain fermentation, can be made of organic compound fertilizer granulation.
7.Can be made into granular feed, fish feed for good.
8.For flowers/special economic crop fertilization, can improve soil organic matter.
9.The sale of organic fertilizer can acquire additional economic benefits.
