Feed Mixing Crushed Machine

This machine is suitable for small, large and medium-sized farms (chicken farms, pig farms, cattle farms) and other feed processing.There are four varieties of 500, 1000, 1500 and 2000 types, with an output of 1-4 tons per hour and a small footprint, which is suitable for the production of various feeds.

SKU: ZY-1205 Category: Brand:

Automatic Animal Feed Mixing Machine

This poultry feed grinder and mixer can be used to crush all kinds of cereal, grain, like corn, wheat, bean, and others to powder that can make animal feed or for other process, it has the crush and mix function at the same time, very convenient and easy to operate.

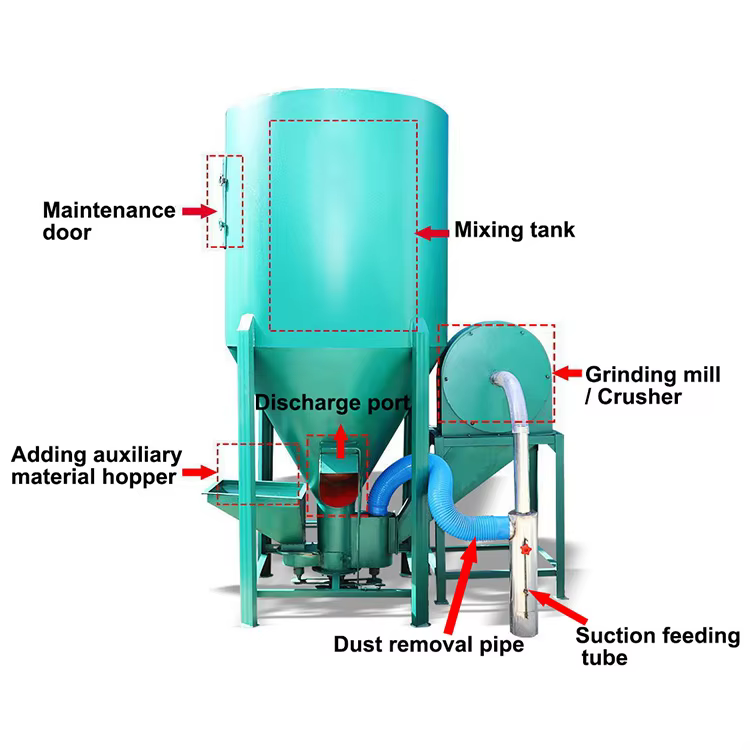

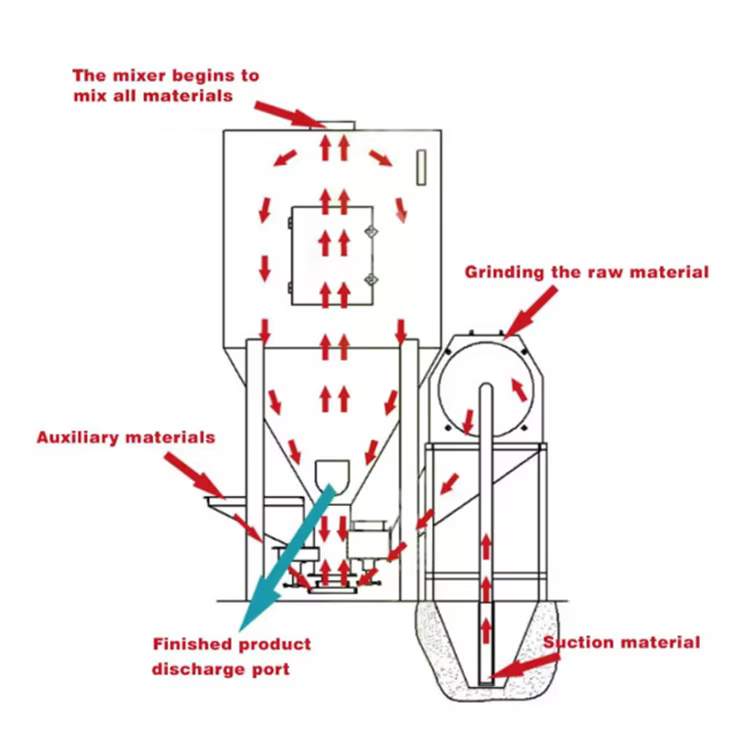

Chicken Feed Making Processing Machine Analysis
Chicken Feed Making Processing Machine Data
Model Voltage Crusher Power Mixer power Machine Size   (mm) Machine Weight(kg) Capacity(kg/hour) Packing CBM& weight
JY-300 220V,50HZ 4KW 4KW 1700*950*1800 245 300 4.1cbm-330kg
JY-300A 380V,50HZ 7.5KW 3KW 264
JY-500 220V,50HZ 4KW 4KW 1850*1000*2200 265 500 4.5cbm-360kg
JY-500A 380V,50HZ 7.5KW 3KW 284
JY-500B 380V,50HZ 11KW 3KW 336
JY-1000A 380V,50HZ 7.5KW 3KW 2100*1250*2750 318 1000 7.5cbm-550kg
JY-1000B 380V,50HZ 11KW 3KW 370
JY-1000C 380V,50HZ 15KW 3KW 385
JY-2000A 380V,50HZ 11KW 4KW 2550*1550*3100 550 2000 12cbm-865kg
JY-2000B 380V,50HZ 15KW 4KW 565
How to Choose Feed Mixing Machine

1. Extra-fine 1.5 mm grinding disc is a culture of miniature birds, aquatic animals such as: cockroaches, embroidered eyes and other bird breeding
2. 2.0 mm grinding discs are cultured: parrots, thrushes, finch, and other pet birds.
3. 2.5 mm grinding discs are cultured: small rabbits, young chickens, ducklings, goslings, young birds, young birds, young peacocks, young aquatic fish and other small animals.
4. 3-4 mm grinding discs are cultured: rabbits, chickens, ducks, geese, pigeons, birds, peacocks, aquatic fish, etc.
(3-4mm size is 3.0mm.3.5mm, 4.0mm for your choice)
5. 5-6 mm grinding discs are cultured: pigs, cattle, sheep, dogs, pigs, horses.
(5-6 mm size is 5.0mm, 6.0mm for you to choose from)
6. 7-12 mm is generally used to make large animals such as fishing lures, large birds, and mice. It takes a few days to order.
(7-12 mm size is available in 7.0mm, 8.0mm, 9.0mm, 10mm, 12mm)
7. If you have special requirements, please fill in the particle size requirements of the granulator grinding disc, we will install and debug according to your requirements.
8. The size of the grinding disc aperture of the feed pelletizer is a kind of grinding disc according to the customer’s requirements.

Please tell us the type of animal you breed and the size of the farmed animal during the communication with us.
This is convenient for us. We recommend the size of the disc diameter that suits you.

Our Certification
Weight 38 kg
Dimensions 140 × 70 × 150 cm
Capacity

60

Packing volume

0.2cbm

Material

galvanized
